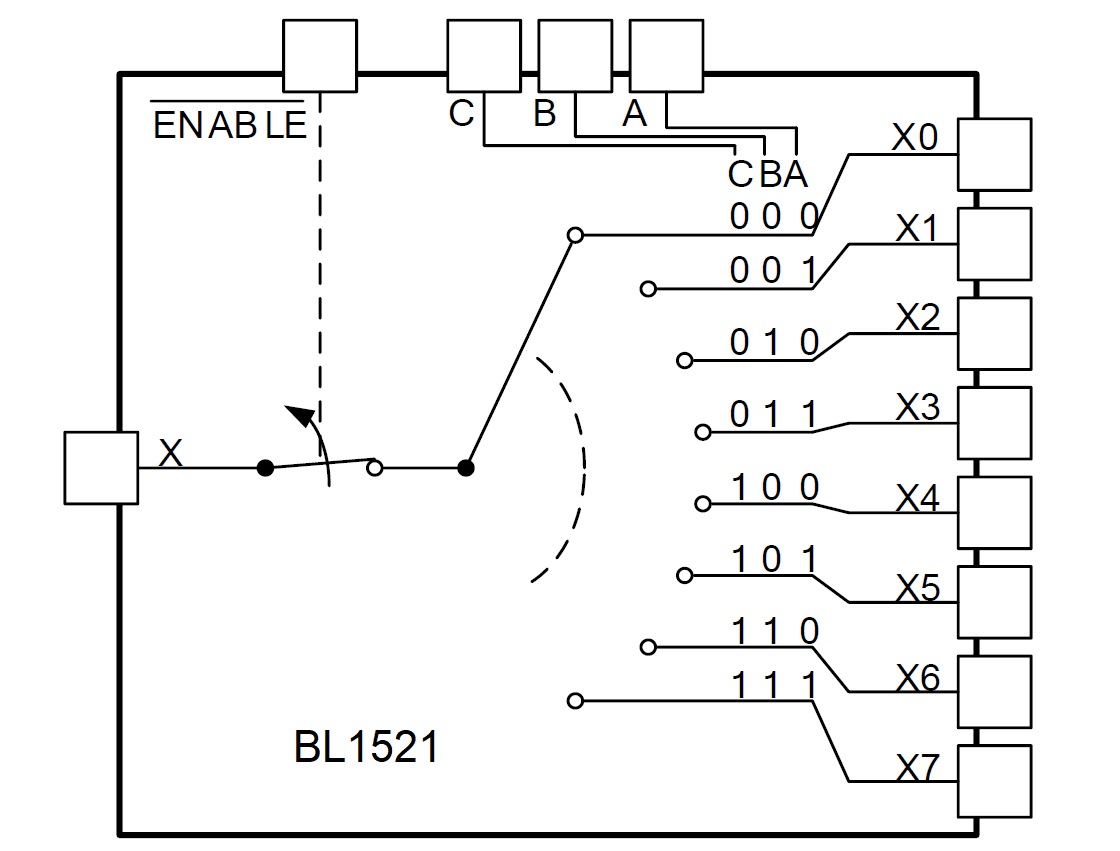

The BL1521 is an 8-Channel Analog Multiplexer and Demultiplexer that is designed for 2.5V to 5.5V VCC operation. It has low on-resistance (40Ω TYP) and very low off-leakage current (1nA TYP). The BL1521 device handles both analog and digital signals.

•  Wide Power Supply Range: 2.5V to 5.5V
•  On-Resistance: 40Ω(TYP) at 5.0V
•  -3dB Bandwidth: 550MHz
•  Break-Before-Make Switching
•  Rail-to-Rail Signal Range
•  High Off-Isolation: -83dB (f=1MHz)
•  Operation Temperature Range: -40°C to +125°C

• 黄金城网址多少:BL1521_V1.0.pdf
