    • 首页 > 产品与服务 > MEDS92630-Q
    MEDS92630-Q

    92630、three-channel、LED driver

    产品简介

    The ME0S92630-Q is a three-channel linear LED driver with analog and PWM dimming control.

    优势特点
    • AEC-Q100 qualified.
    • 3-charnel LED driver.
    • Wide input voltage range: 5V-40V.
    • Adjustable constant output current set by reference resistor.
    • Use multiple ICs or multiple channels of a single IC In parallel to achieve higher current.
    • Low voltage drop.
    • Open and short circuit LED detection with anti-burr pulse timer.
    • Voltage feedback of each channel LED lamp string is used for single LED short circuit detection.
    • Independent fault pin for single LED short circuit fault.

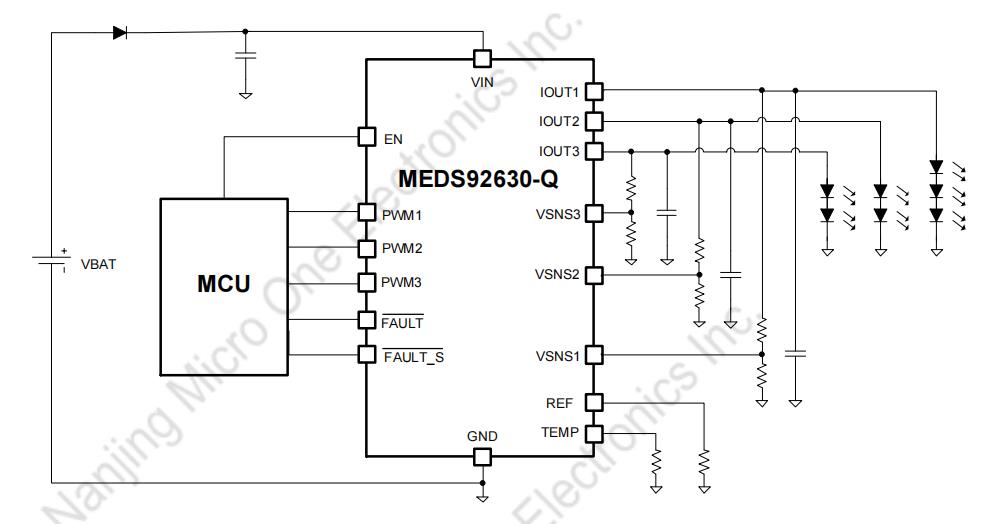

    应用电路

    产品手册
